Brand: Tapco
Type: Does not apply
Model: M2X Measuring Gauge Tool
Style: Tapco Brake
Material: Aluminum
Product Dimensions: 35.5 x 5.9 x 3.25 inches
Item Weight: 12 lb
Description
The Tapco M2X Measuring Gauge is the first innovative tool that will work universally with any Tapco (except for the Pro 50 and Windy Special) siding brake. Tapco M2X Measuring Gauge is a time saving system that will allow a contractor to measure right on the brake, instead of using a tape measure. This gauge includes on board measuring tape and two movable brackets with corresponding measurement markings for more precise measuring and efficient bending.
Features & details
Works with 10' 6" and smaller Pro Series (PRO III and newer) and the Maximum XL and MX Series brakes
Can be used on 2', 4', 4'6", 6', 6'6", 8'6" brake by cutting the length of the bar with a grinder
Onboard measuring tape & helps increase accuracy and reduce waste

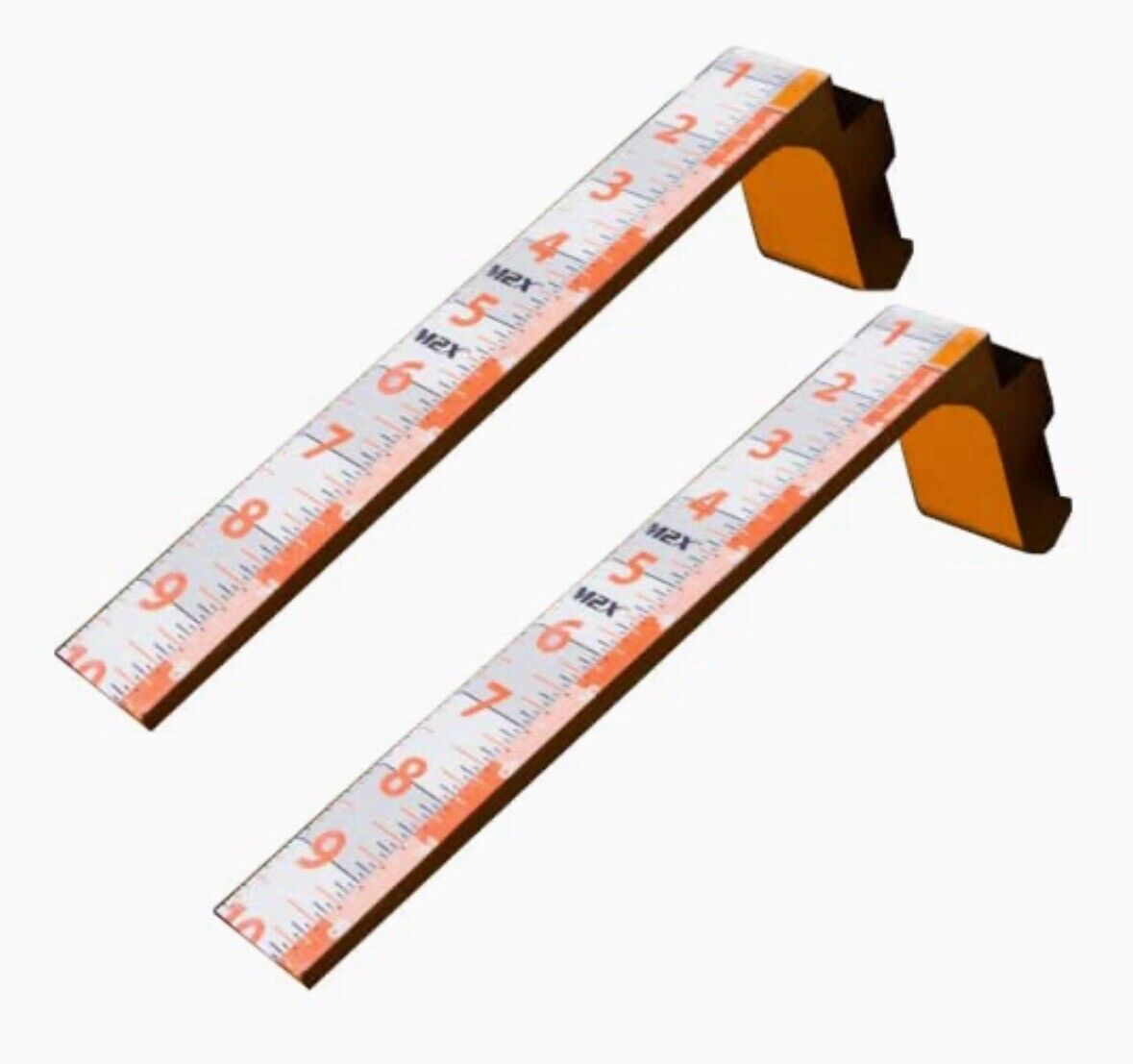

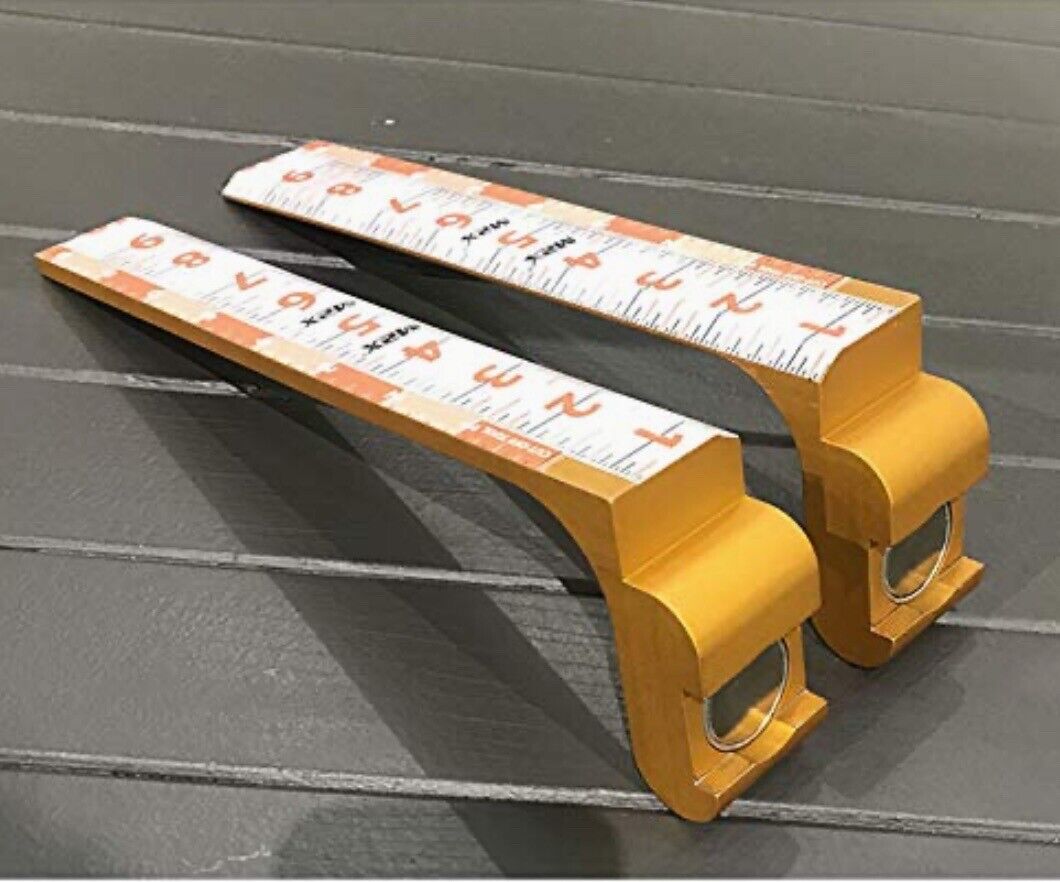

Easy-to-attach, movable magnetic brackets with measurement markings

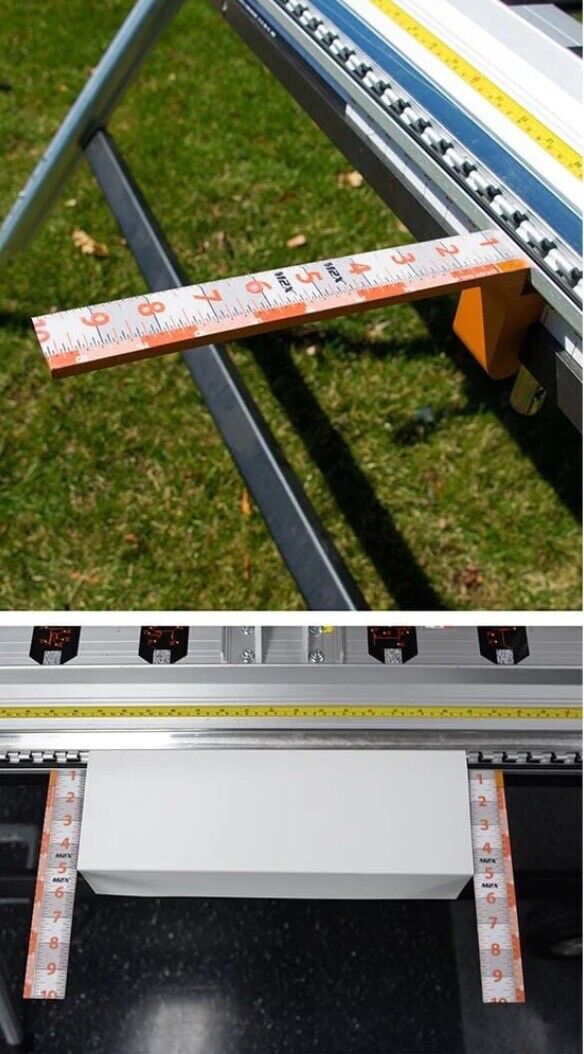

Beveled edge allows you to measure your bends from the middle of the brake to save you from walking back and forth

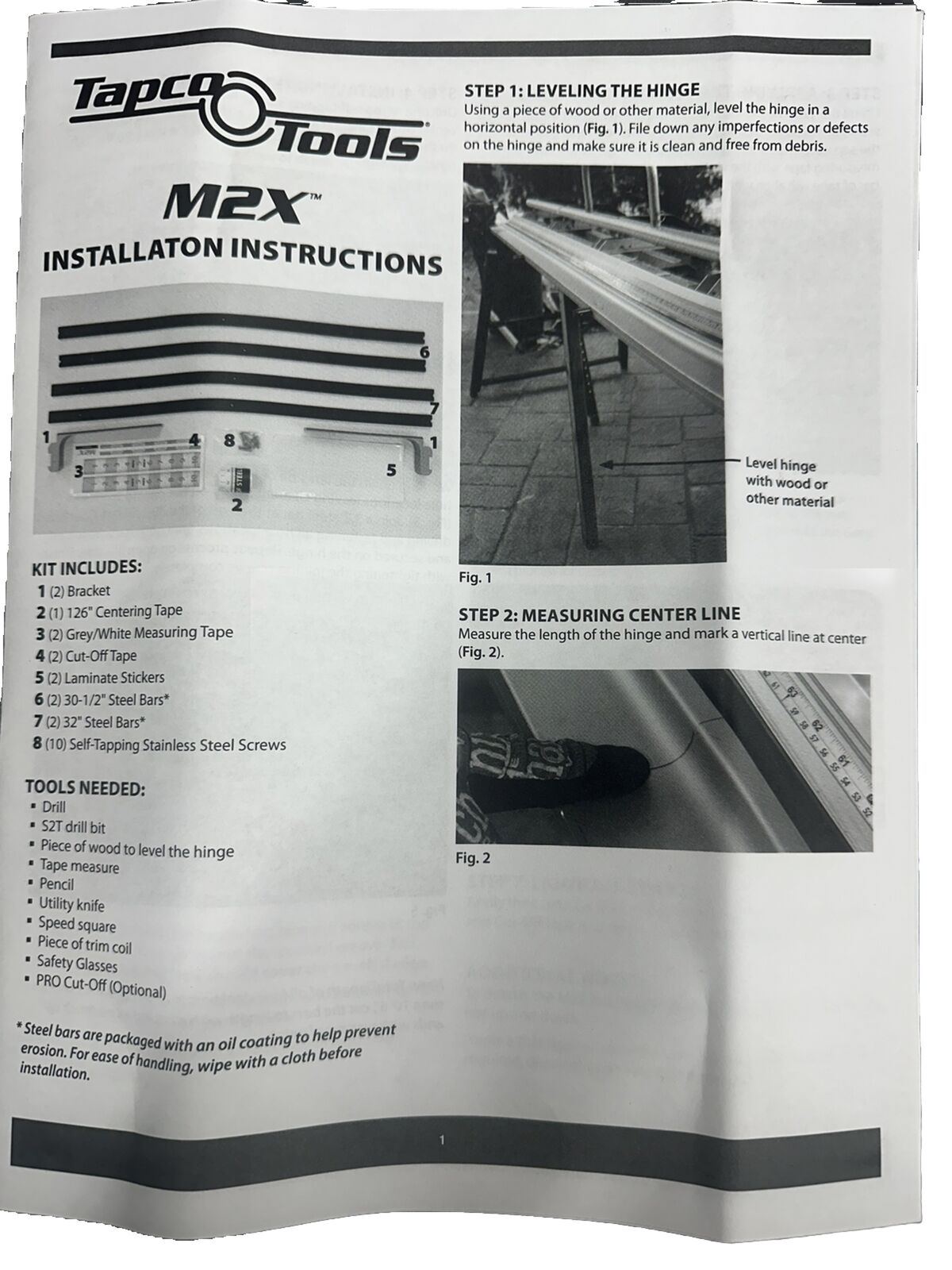

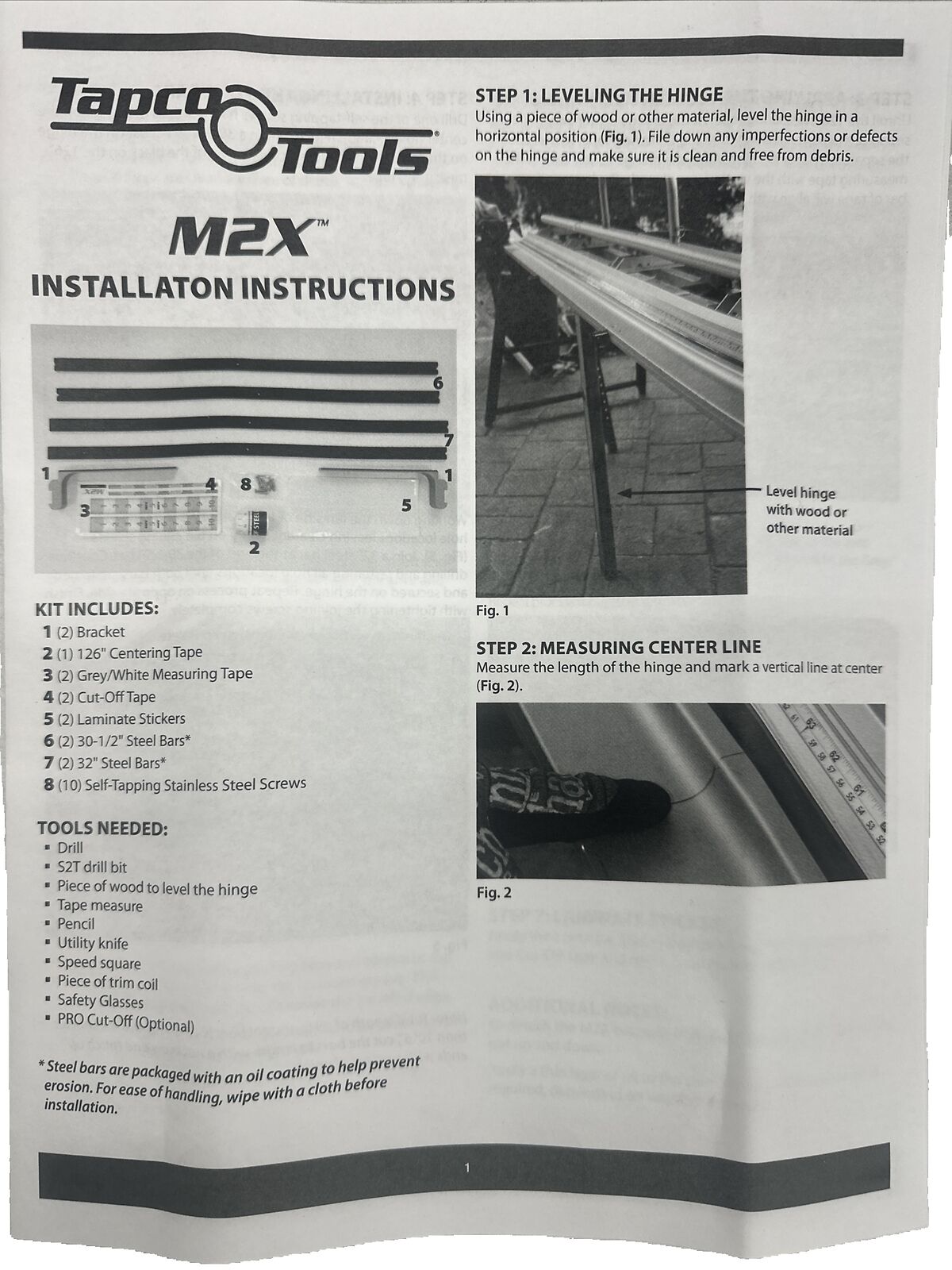

KIT INCLUDES:
1 (2) Bracket
2 (1) 126" Centering Tape
3 (2) Grey/White Measuring Tape
4 (2) Cut-Off Tape
5 (2) Laminate Stickers
6 (2) 30-1/2" Steel Bars*
7 (2) 32" Steel Bars*
8(10) Self-Tapping Stainless Steel Screws
TOOLS NEEDED:
• Drill
• S2T drill bit
• Piece of wood to level the hinge
• Tape measure
• Pencil
• Utility knife
• Speed square
• Piece of trim coil
• Safety Glasses
• PRO Cut-Off (Optional)
